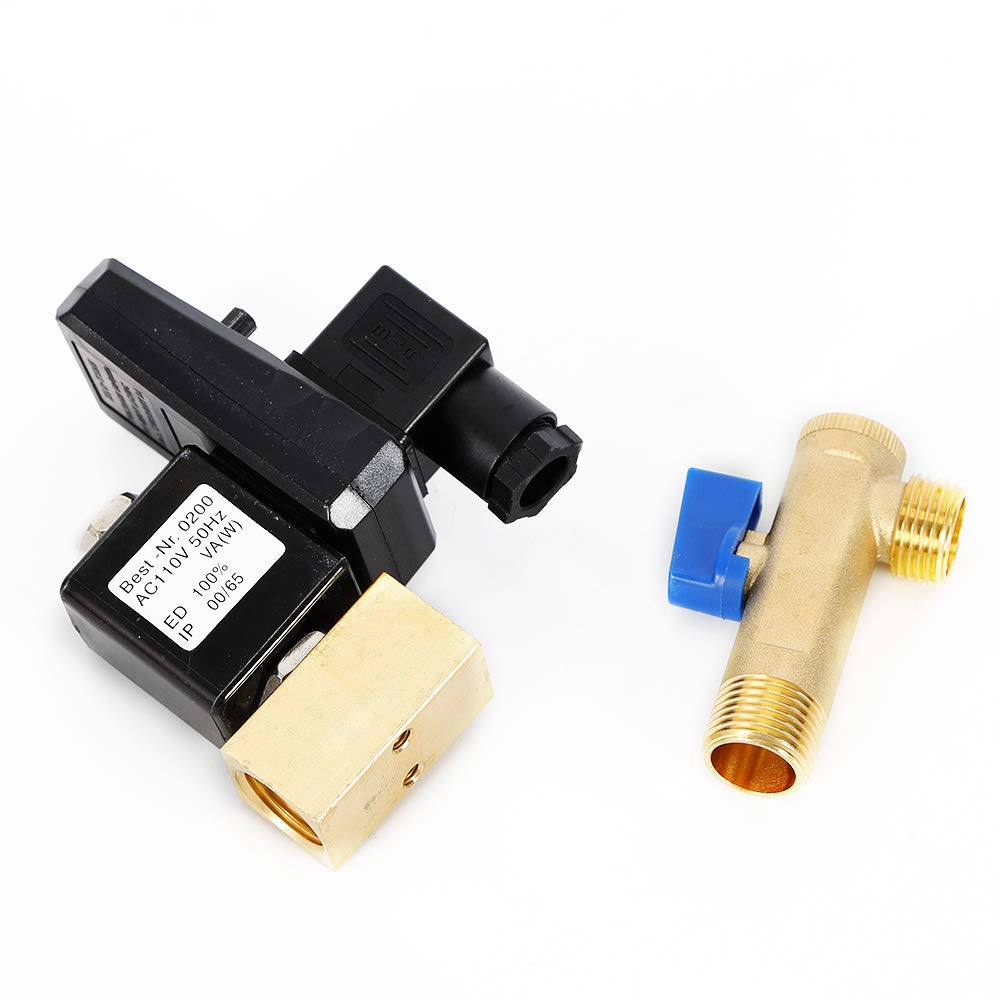

110V AC 1/2" Automatic Electronic Timed Air Compressor Drain Valve - 2 Way Auto Drain Valve for Air Compressor Gas Tank - Perfect for Industrial & Home Workshop Use

Product Description

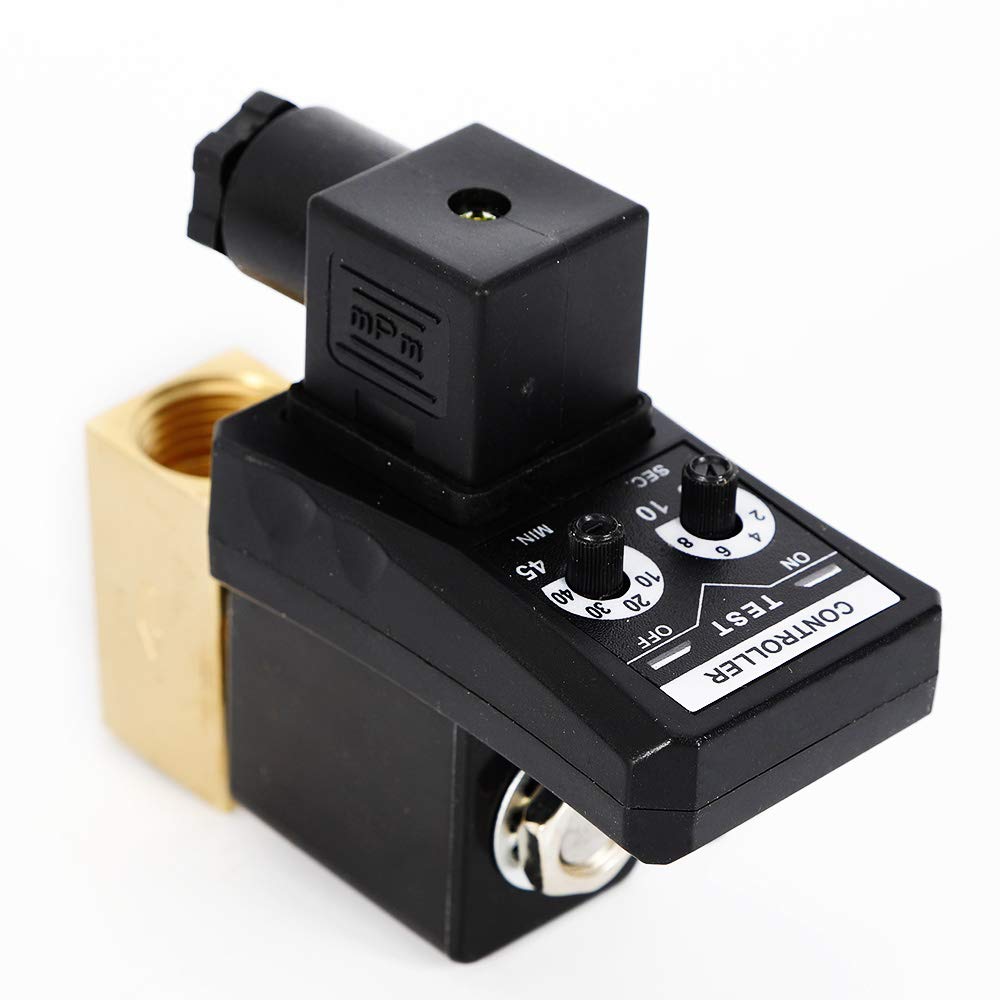

Specification:Product Name: Timing Drain ValveVoltage: AC110V 50HzVoltage Range: 10%Time Interval ( OFF ): 0.5--45 minutes (adjustable)Discharge Time ( ON ): 0.5--10 seconds (adjustable)Manual Test Button: Yes( micro switch)The Current Consumption: Max 4mAShell Material: Flame retardant ABS plasticElectrical Connection: DIN43650AIndicator Lamp: LED indicating power ON / OFFType: two-way direct-acting valveFlow Aperture: 5 mmInsulation Class: HIn / Out Port Size: 1/2"Maximum Working Pressure: 1.6MpaMaximum Temperature: 90 CValve Material: Forging brassSize:90*99mm/3.89*3.54inchWeight：0.58kgInstallation:1. Clean the compressed air system before installing2. Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact3. The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1"4. The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND5. Always tighten the long screws on the terminal box to prevent the water from burningTimer setting:Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjustedNote: Power Cable Is NOT Included.Package Include:1x Drain Valve
