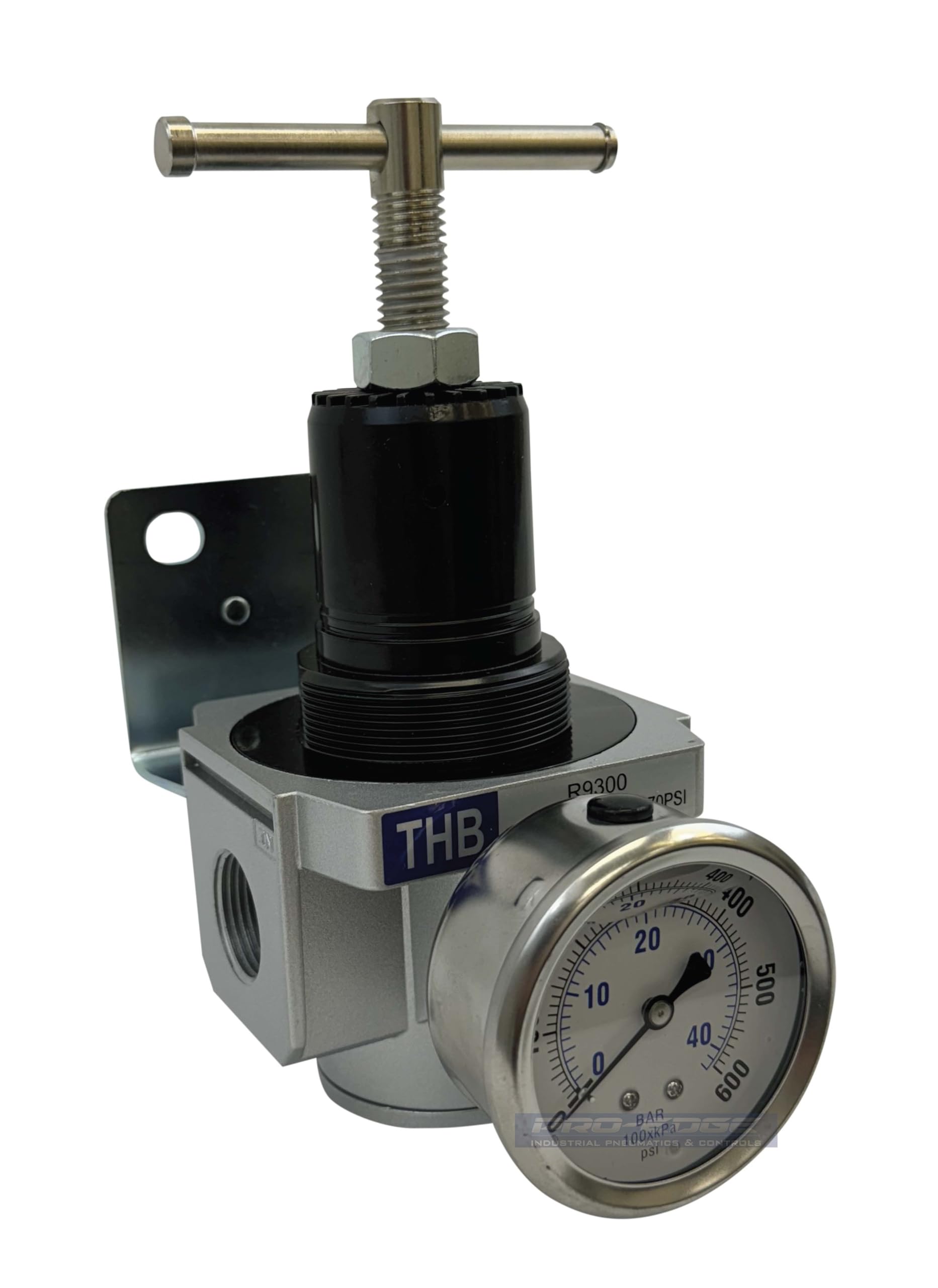

1" NPT High Pressure Heavy Duty THB Compressed Air Pressure Regulator with Gauge & Bracket - 185 CFM (10-570 PSI) - Ideal for Industrial Pneumatic Systems, HVAC, and Manufacturing Equipment
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:32655788
Product Description
In-line Air Pressure Regulators Are Used To Reduce And Maintain Pressure At A Level Suitable For The Device Downstream. Pneumatic Equipment Operating At A Higher Than Recommended Pressure Can Cause Excess Torque, Force And Wear While Simultaneously Wasting Compressed Air. Pneumatic Equipment Operating Below Specified Pressure Can Cause Machines To Fail To Meet Their Design Performance Specifications. Precise Pressure Control Is Essential For Efficient Operation Of Air Powered Equipment. An Air Line Regulator Is A Control Valve Which Reduces The Upstream Air Supply Pressure Level To A Specified Constant Downstream Pressure. Installation, Operation & Maintenance Instructions Are Included. Back Mount Pressure Gauge And Wall Mounting Bracket Included.
Product Features
THB (R93) High Flow Compressed Air Pressure Regulator Easily Adjusts Higher Pressure 10 PSI to 570 PSI with Adjustable T Handle
High Pressure & High Flow Unit is Rated for Heavy Duty Industrial Applications with Maximum Output Pressure No Greater 570 PSI
725 PSI Max Input Pressure, 185 CFM Flow Rate, 7-3/4" Height, 3-1/2" Width, (1" NPT Inlet/Outlet)
0-600 PSI Liquid Filled Gauge Included, Standard Relieving Style Regulator, Equipped with Lock Nut for a Safety Locking Function
Front & Back 1/4" NPT Gauge Ports Allow for Multiple Mounting Configurations, Plug Included for the Unused Port
