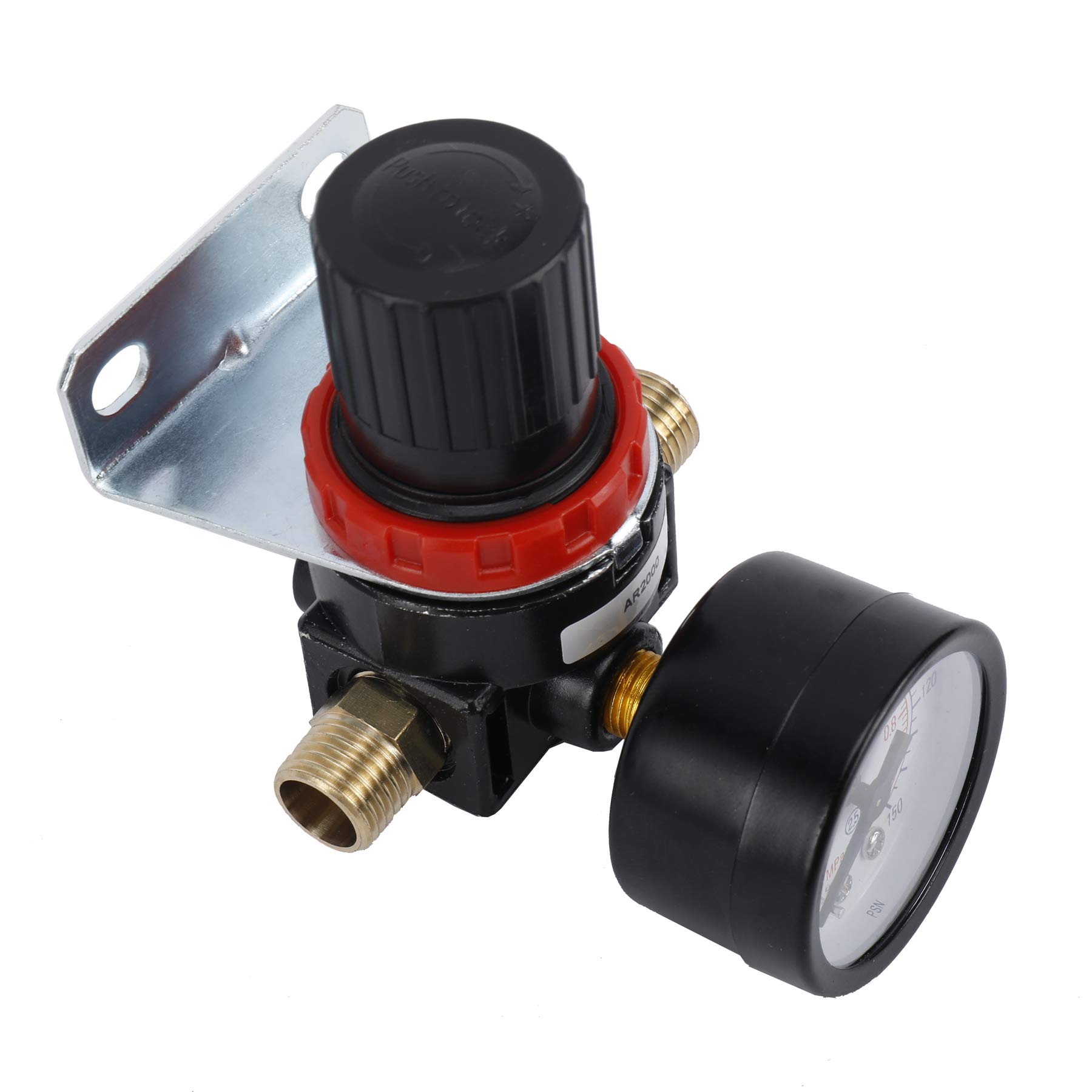

AuInn 1/4" PT AR2000 Mini Air Pressure Regulator Kit with Bracket - Compressed Air System Pressure Relief Valve for Industrial Tools, HVAC & Pneumatic Equipment

Product Description

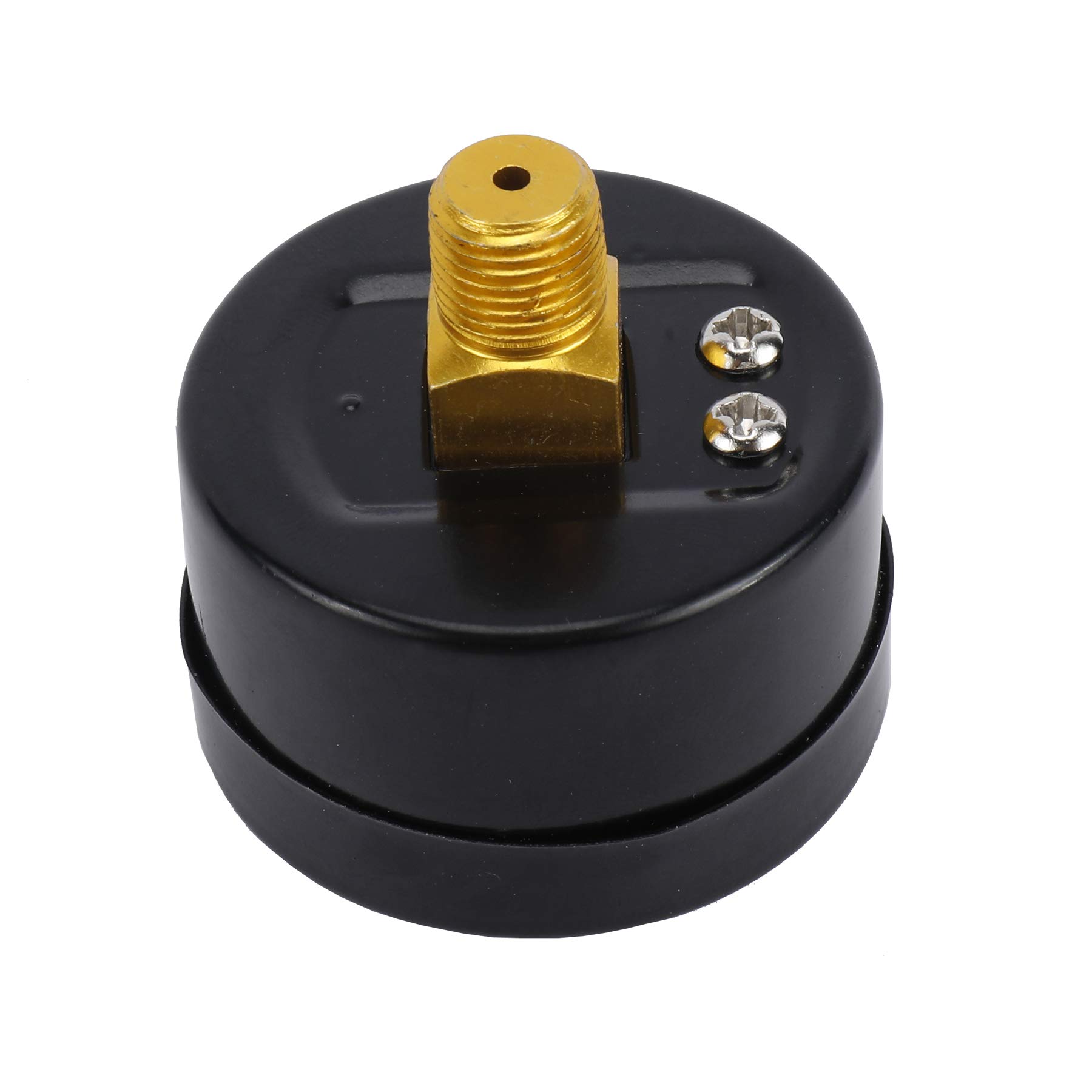

Accessories 1 × AR2000（Air Pressure Regulator）1 × Metal Bracket1 × Pressure Gauge1 × Teflon Tape2 × 1/4 PT Male Pipe Fittings2 × Straight Quick Release Connectors Winding the thread with Teflon Tape could make a better sealing effect. 1/4 PT Compressed Air Regulator Specifications Use Medium : Compressed AirSize : 1/4 PTMaximum Inlet Pressure : 1.5MPaOperating Pressure Range : 0.15~ 0.85MPaMaximum Service Pressure : 1 MPaOperating Temperature Range : -10℃ ~ +60℃Drain Type : ManualMaterial : Aluminum + Plastic 1/4 PT Thread Smoother threads design. Strong resistance to pressure Thickened Bracket Holes on the back for hang up to effectively keep the stability. Light weight and easy to install and remove. Precision Pressure Gauge Regulate pressure, keep or lower the air pressure. The pressure gauge must be tightly installed on the main body. Two Units of Measurement (psi/mpa) for easy reading. Clear and Precise. Use and Maintenance Instructions Before Using Wrap the Sealed Tape around the fittings to avoid Air Leakage.Check whether the original is intact.Clean the port and fitting before installation to effectively avoid bringing dust to the air path. During Installation Pay attention to the direction of gas flow. Check for proper take overs. Stay vertical.Leakage may exists during the First Installation. (the Internal Pressure is Different from the External Pressure at the beginning, and excess pressure will be discharged. Please wait patiently. No Leakage will occur after exhausting Excess Air).
