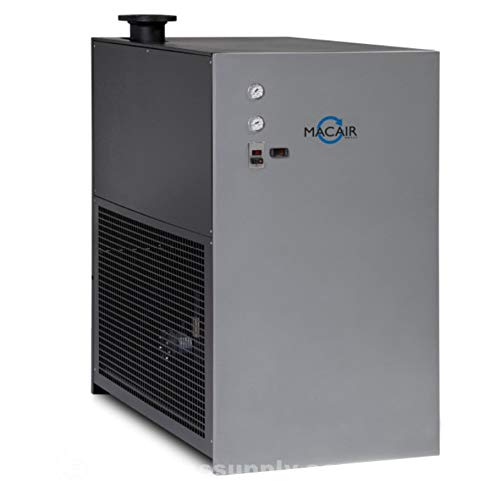

10 CFM Non-Cycling Refrigerated Air Dryer - Patriot Series 115V for Compressed Air Systems | Ideal for Workshops, Automotive & Industrial Applications

Product Description

MACAIR UA10A Ultra Series Non-Cycling Air Dryer 115v 1hp-60hz MECHANICAL SPECS Inlet Air Flow: 10 SCFM Inlet Pressure: 100 PSIG Inlet Temp: 100 F DEWPOINT TEMP: 41 F COOLING AIR FLOW: 190 CFM PRESSURE LOSS, DESIGN: 2.7 CONDENSER TYPE: Air Cooled WEIGHT: 70 LBS IN & OUT CONNECTION: 1/2" FPT DRAIN CONNECTION: 1/4" FPT MAXIMUM ABIENT TEMP: 110 F MINIMUM AMBIENT TEMP: 40 F MAXIMUM AIR PRESSURE: 232 PSIG ELECTRICAL SPECS Locked Rotor Amps: 18 Rated Load Amps: 2.9 Max Fuse: 15 Power Connection: 115-1-60 Full Load Power (WATTS): 220 STANDARD FEATURES Aluminum block heat exchanger Air to air pre-cooler/re-heater Stainless Steel mesh separator Tecumseh Compressor Dew point Indicator On-Off Switch Compressor Overload Heavy duty industrial powder coated steel cabinet Environmentally friendly R134a refrigerant Refrigerant access ports Expansion valve Hot Gas Bypass Valve Filter Drier Programmable electronic drain valve with y-strainer Easy access cabinet design allows for ease of service. 9 foot power cord and plug Made In USA OPTIONAL FEATURES Pre-filter and after-filters mounted on the dryer Additional pressure and temperature gauges Mounting Brackets
