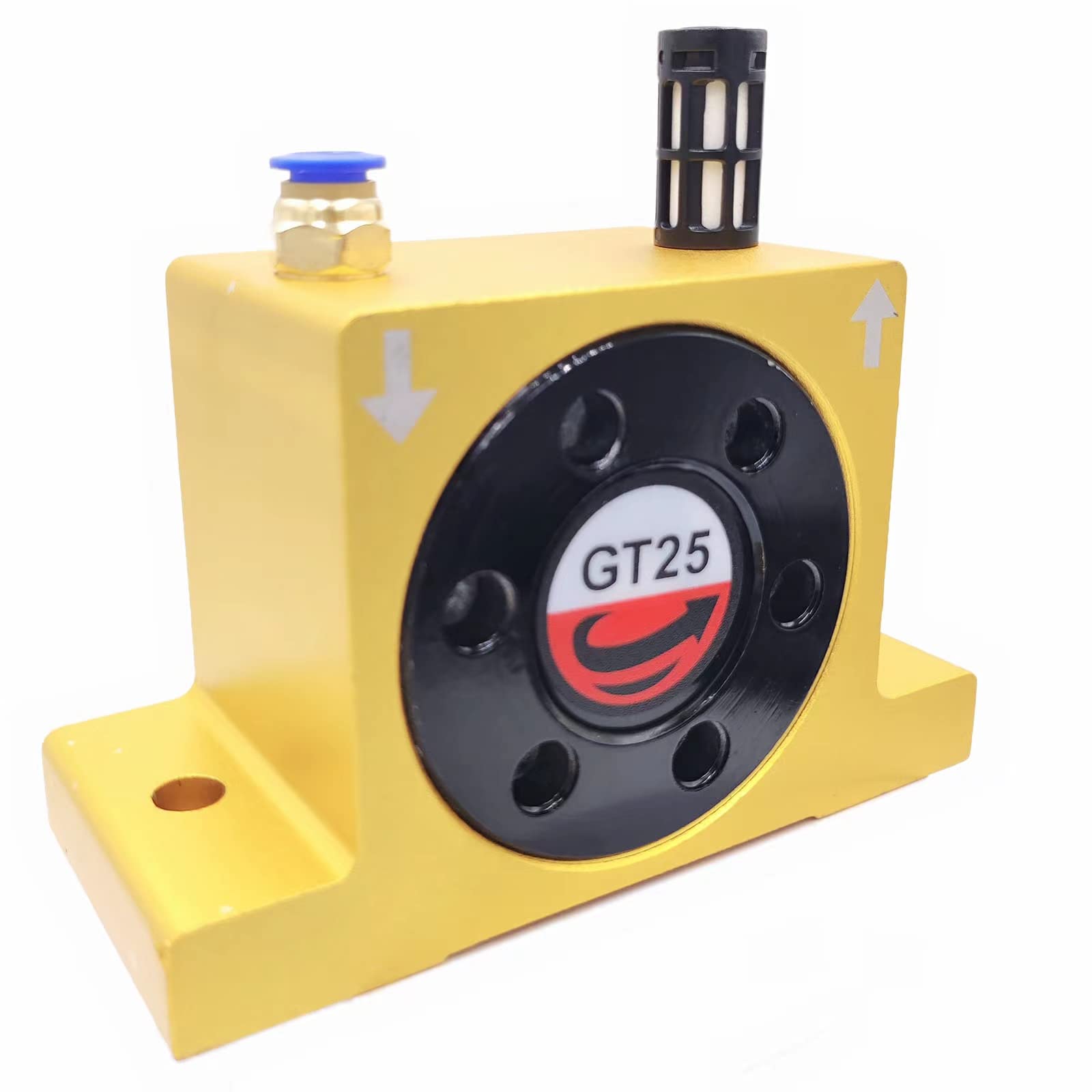

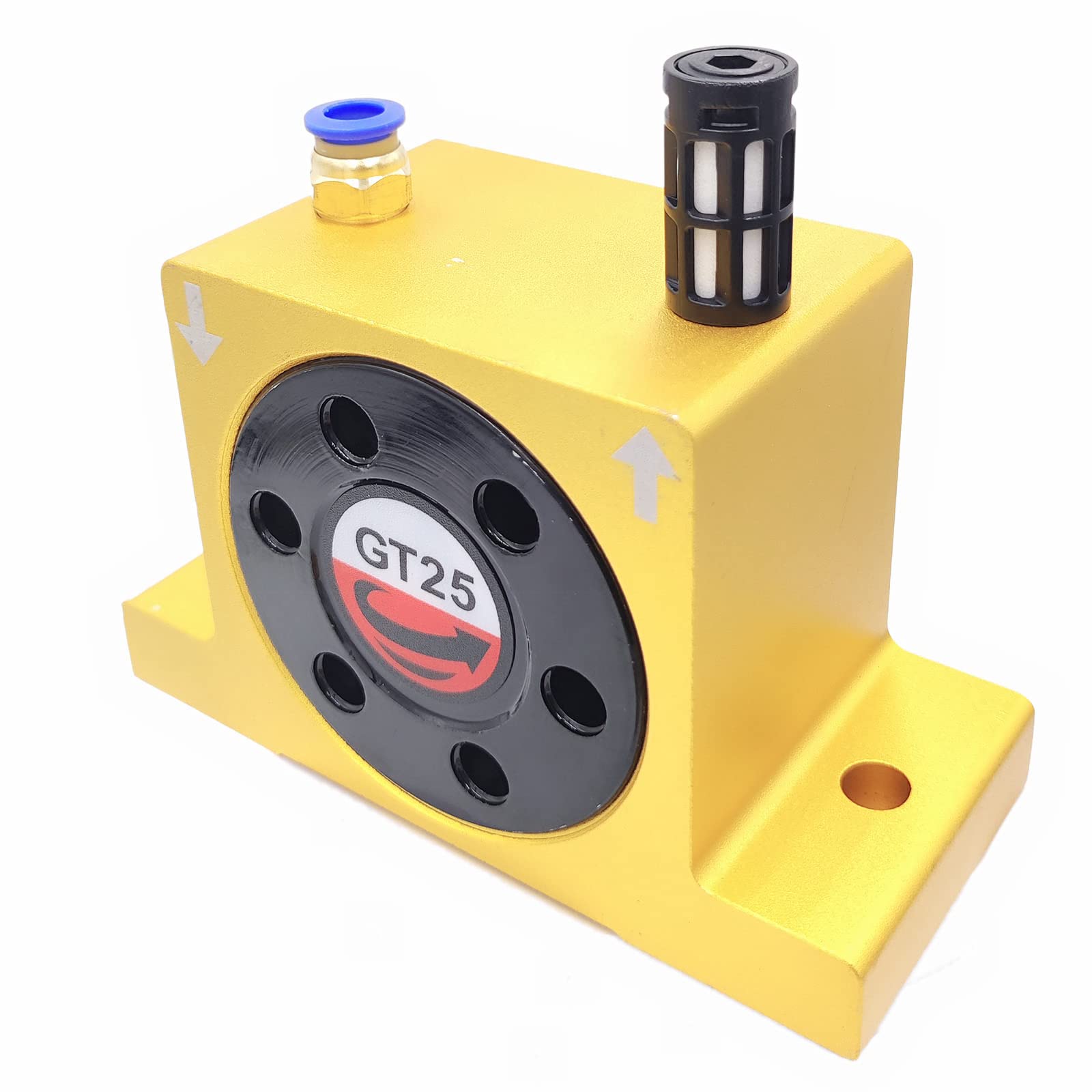

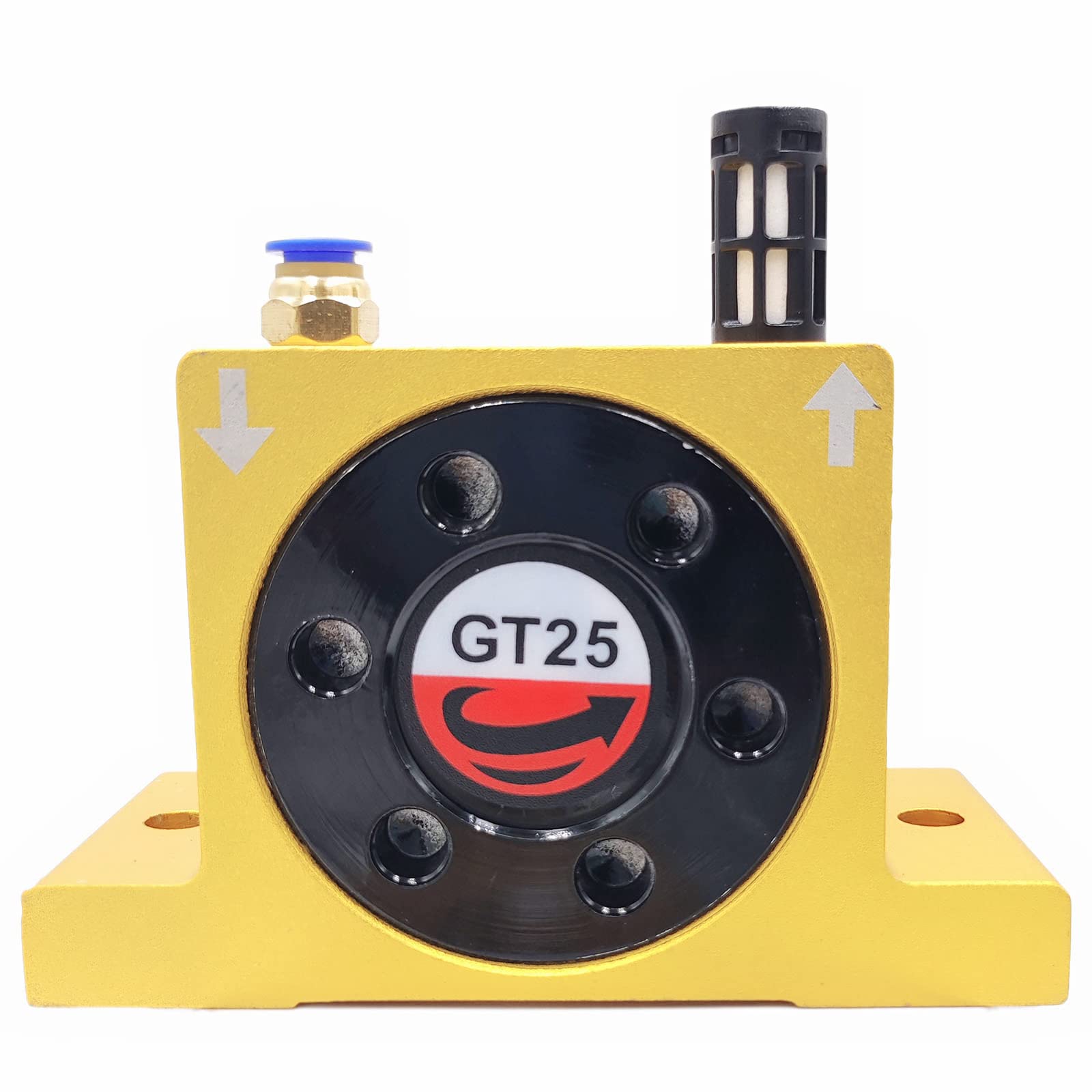

GT25 Industrial Turbine Vibrator - 1/4" Pneumatic Air Powered Silent Wheel Vibrator with Muffler for Concrete, Foundry & Bulk Material Flow Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:60456757
Product Description
Feature: A high speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration.The body is made from an extruded stove enamelled aluminium section and the hard coated end plates enables the vibrator to be used in the food and pharmaceutical industries.The GT-turbine vibrators comply to current international noise regulations under factory test contitions. Design: The vibration is produced by the centrifugalforce of the postive and negative unbalance moments in the rotor,the rotor is supported on two heavey duty,prelubricated ,matched shielded ball bearings,A special long life material ensures a long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily replace using only a pin-wrench.The end plates are fitted with right-andleft-hand threads and self-locking. Specification: 1.Turbine type pneumatic vibrator 2.Clean air is required 3.Low noise 60~75dBA 4.Compact size Wide application range include: Emptying of Bunkers Screen Filters Vibrating Tables Preventing adhesion’s in pipelines and silos Moving of bulk materials Transporting of fine powders Foundry industry Pipeline Transportation Funnel Feed Screening Conveyor Packaging included: 1 x Pneumatic Industrial Turbine Vibrator
Product Features
--Principle of operation The vibration is produced by the centrifugal force of the positive and negative unbalanced moments in the rotor. The rotor is supported on two heavy-duty pre-lubricated matched sealed bearings.
--Application The GT range of the turbine vibrator particularly suitable for use in food and pharmaceutical industries where exhaust contaminated with oil is unacceptable.
--Durable The is a turbine vibrator made from heavy-duty extruded stove enameled aluminum section and fitted with hard coated aluminum end plates having the right and left-hand threads, these should only be removed using the correct size face spanner.
--Long Life Use With special high-performance material ensures long working life. The inner and outer raceway of the bearing is designed so that the bearings can easily be removed without using special tools.
--Quiet OperationClean filtered air is essential. It is extremely quiet and produces low noise levels on most of the applications, thus helping to conform to noise regulations.
Customer Reviews
So I got this for my sandblast cabinet. I wasn't fully understanding of the operation but will detail my misunderstanding so others are aware if they aren't already fully familiar of these.My thought was that I could put this in-line with my sandblaster hose thinking that when I consumed air with the sandblaster it would vibrate and keep the media shook down in the hopper. The thing is while this has a muffler, it sends air out the side too. Obviously this meet my need.What I'm going to end up doing is rigging up a foot switch so I can hit the pedal and have it shake down the media. Should be perfect and better than me slapping the cabinet.But, this came with no instructions, info, etc. what was a little bit of a bummer, hence 4 instead of 5 stars.
